BILBAO
 Basque Country . Spain

Bilbao Metro Map © R. SchwandlBilbao Tram

 System

With about 1 million inhabitants, Bilbao (in Basque also Bilbo) is the largest metropolitan area in the Basque Country (Northern Spain) (including towns like Portugalete, Sestao, Getxo, Barakaldo). The metropolitan area spreads out along both sides of the river Nervión and the Ría de Bilbao, suggesting a Y-shaped metro system.

For the railway enthusiast, Bilbao is quite fascinating as it provides several different types of urban railways operated by various companies, though badly integrated with each other as far as fares are concerned. With the opening of metro line L3 in April 2017, Bilbao even has two different metro operators, Metro Bilbao for L1 and L2 and Euskotren for L3:



 Metro Bilbao (L1/L2)

Fosterito at Moyua On 11 November 1995, Line 1 opened from Casco Viejo to Plentzia, using existing suburban surface tracks formerly served by the Basque Railways (EuskoTrenbideak) between Lutxana and Plentzia. A new tunnel was built between Lutxana and Casco Viejo (Old Town) through the city centre. Metro Bilbao therefore uses metre-gauge. The second section, Casco Viejo - Bolueta, was taken into service in July 1997. At Bolueta, the Metro line connects directly to EuskoTren's suburban service towards Bermeo and Eibar.

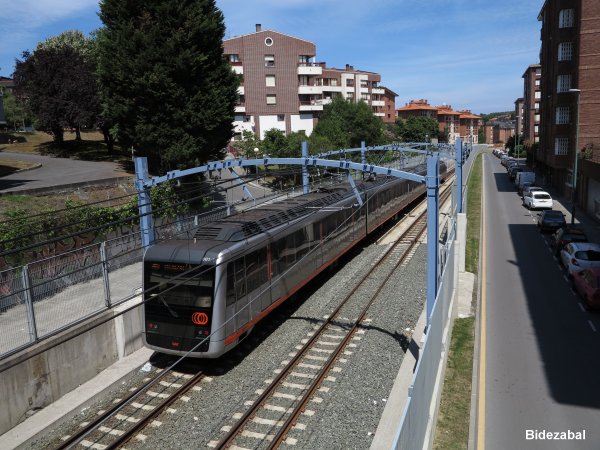

Line 1 now starts at Etxebarri, then serves the elevated station at Bolueta (on top of EuskoTren's station), before entering the tunnel through the city centre and crossing the river Nervión twice in a tunnel (between Casco Viejo and Abando and between San Mamés and Deusto). At San Inazio (a three-track station - two separate tracks with a central platform for inbound line 1 and line 2 trains), the trunk route splits into two branches. Line 1 comes up to the surface and runs along the former suburban line through industrial zones (serving Erandio in a tunnel station). In Areeta (Las Arenas) the line goes underground again for 1 km and after that it runs mainly on an elevated structure through the nice residential area of Getxo (Algorta also in tunnel) to Bidezabal. North of Bidezabal, a short section was put underground in 2012 to eliminate one of the last level crossings on the old line. Beyond Bidezabal, the environment gets more rural. By April 2017, another short section had been put underground including Urduliz station; from here, the line is single-track and runs down to Plentzia by the sea through nice woodlands.

Construction work for Line 2 began in 1997. This line shares tracks with Line 1 between Etxebarri and San Inazio. The first new 5.8 km stretch from San Inazio to Urbinaga opened on 13 April 2002. This line is almost totally underground, just at Urbinaga, an elevated structure was built across the Galindo Valley; at Urbinaga, a transfer station to Renfe's Santurtzi and Muskiz services was planned, but did not materialise. In various stages, Line 2 reached Basauri in 2011 and Kabiezes in mid-2014.

Trains for the Bilbao Metro were made by CAF (a company located in the Basque Country), and are equipped with air conditioning, accoustic and visual station announcement. Cars are of the modern walk-through type. Although narrow gauge (1000 mm) is used, trains are still 2.8 m wide.

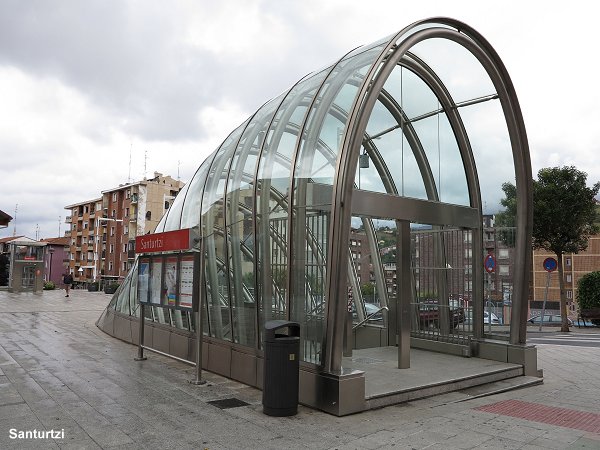

Stations were designed by Norman Foster, with all underground stations being identical (except Sarriko, San Inazio and Ansio - as well as those on the older section between Erandio and Algorta). All the stations are fully accessible with lifts, and escalators usually are also installed between vestibule and street level, but not down to the platforms (which can be a bit annoying at Abando (Railway Station) where the lift doesn't take you directly to the railway station complex! From the street, most stations are accessed through "Fosteritos", typical glass entrances named after the architect. Casco Viejo station is situated in the mountain and can be accessed almost at grade from the central Plaza Miguel de Unamuno or via a lift from the top of the mountain Begoña.

In June 2014, Line 1 runs from Plentzia to Etxebarri (29.5 km), and Line 2 from Kabiezes to Basauri (23.1 km). Total length of the network is 43.5 km, and since 2020 with 42 stations.

 Photos
Metro Bilbao Peñota Metro Bilbao Bidezabal Metro Bilbao Kabiezes Metro Bilbao urbinaga Metro Bilbao Ariz Metro Bilbao Plentzia

 EuskoTren (L3)

Line 3 runs from Kukullaga (San Antonio de Etxebarri) to Matiko - 5.9 km with five intermediate stations: Otxarkoaga, Txurdinaga, Zurbaranbarri, Zazpikaleak/Casco Viejo (interchange with L1/L2) and Uribarri. The section between Zazpikaleak/Casco Viejo and Matiko was taken over from a former EuskoTren line (Casco Viejo - Deustu closed 10-05-2010) - it was rebuilt and connected to a new double-track tunnel (1.9 km) beneath the Artxanda mountain to Ola, so that trains from Lezama (line E3) can also use the new tunnel. On 19 June 2017, also trains from Durango and Donostia/San Sebastián started to run through the L3 tunnel, terminating at Matiko, eventually on 09 Sept 2019, trains from Bermeo (E4) were also diverted into the L3 tunnel.

Except for the termini Matiko and Kukullaga, all L3 stations follow the standard design developed by Norman Foster for metro lines L1 and L2, but instead of the typical red signs, these feature blue EuskoTren signage. The class 950 trains used on L3 were manufactured by CAF and consist of three cars, with the option of adding a fourth car if necessary.

EuskoTren's main line used to start at Atxuri and run via a new transfer station with Metro at Bolueta out to Lemoa (15-minute headway) where the line splits into a branch to Gernika / Bermeo and another one to Durango / Eibar (both branches served every 30 minutes). As of September 2019, all suburban trains have been rerouted through the L3 tunnel, leaving the old Atxuri terminus without service. The former EuskoTren route from Atxuri to Bolueta was converted to tram operation on 25 March 2022.



 Photos
Metro Bilbao L3 Metro Bilbao L3 Metro Bilbao L3 Metro Bilbao L3 Metro Bilbao L3 Metro Bilbao L3
 History

11 Nov 1995: L1 Casco Viejo - Plentzia (26.4 km)
05 July 1997: L1 Casco Viejo - Bolueta (2.0 km)
13 April 2002: L2 San Inazio - Urbinaga (5.9 km)
08 Jan 2005: L2 Urbinaga - Sestao (1.0 km)
08 Jan 2005: L1/L2 Bolueta - Etxebarri (1.0 km)

20 Jan 2007: L2 Sestao - Portugalete (1.9 km)
04 July 2009: L2 Portugalete - Santurtzi (1.7 km)
28 Feb 2011: L2 Etxebarri - Ariz (1.0 km)
11 Nov 2011: L2 Ariz - Basauri (1.4 km)
28 Jun 2014: L2 Santurtzi - Kabiezes (1.2 km)
08 Apr 2017: L3 Matiko - Kukullaga (5.9 km)
15 Jun 2020: L1 + Ibarbengoa station

 Projects

Feve's Balmaseda line may be upgraded to metro standard up to Irauregi becoming Line 4, possibly with a new tunnel between Abando and Basurto to serve Irala and Rekalde [Project Website]

Line 5 (in the end likely to be an extension of L3) under construction since 2024, running from a future interchange at Sarratu to Hospital de Galdakao-Usansolo.



 Links

Metro Bilbao (Official Page)

EuskoTren (Basque Railways)

Renfe Cercanías (Suburban Rail)

Consorcio de Transportes de Bizcaia (Regional Transport Authority) + Tourist Passes

ETS - Gestor de Infraestructuras Ferroviarias de Euskadi


Foster and Partners (the architect's site includes more photographs)

Scanned map from my collection - 1997 (58 K)

Other Rail Transport in the Bilbao Metropolitan Area

Bilbao Metro at wikipedia

Bilbao Tram on UrbanRail.Net

BLOG: Read your webmaster's impressions of the Bilbao metro & tram system during a visit in July 2014





Metro Bilbao San Inazio Metro Bilbao Bagatza Metro Bilbao Sarriko Metro Bilbao Fosterito Metro Bilbao Bolueta Metro Bilbao

 Books

Metro & Tram Atlas SpainRobert Schwandl:

METRO & TRAM ATLAS Spanien | Spain

Alicante, Barcelona, Bilbao, Cádiz, Donostia/San Sebastián, Granada, Madrid, Málaga, Murcia, Palma, Parla, Sevilla, Sóller, Tenerife, Valencia, Vitoria-Gasteiz, Zaragoza

Numerous colour images, detailed network maps, Text deutsch/English, ISBN 978 3 936573 46 6, Sept. 2015, EUR 19.50

Mre Info

Robert Schwandl: METROS IN SPAIN. The Underground Railways of Madrid, Barcelona, Valencia and Bilbao.
Capital Transport Publishing, London, July 2001- ISBN 1854142429

Metro Bilbao - Ingeniería y arquitectura - Ingeniaritzako eta arkitekturak. - Imebisa, 1998. 153 pages, many photographs, text in Spanish and Basque (English version available). ISBN 84-923479-0-2

 Photos

metro bilbao metro bilbao metro bilbao metro bilbao

metro bilbao metro bilbao
Photos 1, 3, 4 © Craig Moore

 Other rail transport in the Bilbao Metropolitan Area
Renfe Cercanías/Aldirikoak

Renfe (Spanish National Railways) operates three suburban lines from the centre of Bilbao. Until March 4, 1999 the Muskiz and Santurtzi lines terminated at La Naja which is quite close to Abando, Bilbao's Central Station, but no through service was possible. Therefore a former connecting line between Olabeaga and Abando has been rebuilt to connect the two northern lines (Muskiz and Santurtzi lines) to the southern line to Orduña thus creating also a new multifunctional transfer station at San Mamés (Metro and TermiBus), a joint station with Feve at Ametzola and two new intermediate stations at Autonomía and Zabalburu. Around Autonomía and Ametzola the old line was covered to create new avenues. As Abando is a terminus station, passengers have to change trains here to continue.

With this new line in operation, the former connection along the river Nervión between Olabeaga and La Naja via Parke-Guggenheim was dismantled to allow for the finishing of the new development area Abandoibarra between the Guggenheim Museum and the new Euskalduna Congress and Concert Hall. Instead a tram line from San Mamés via Abandoibarra along the river to the city centre at Arriaga Theatre and further on to Atxuri (EuskoTren Station) was built.

On 25 January 2005, La Peña station was added on line C-3 to Ollargan, followed by the 50m deep station Miribilla on 18 Dec 2008.

Renfe FEVE

FEVE (Ferrocarriles de Vía Estrecha - Narrow Gauge Railways - now integrated into Renfe) operates some narrow gauge lines along the Spanish northern coast (for example Bilbao - Santander - Oviedo). One branch is operated as a suburban service from Bilbao to Balmaseda with a 30-minute headway with 4 stations in the built-up metropolitan area of Bilbao (Bilbao station which is situated close to Abando, Ametzola, Basurto-Hospital and Zorrotza).

Puente de Vizcaya - Bizkaia Zubia: El Puente Colgante (The 'Hanging' Bridge)

Another very special means of transport in the Greater Bilbao area is the Transporter Bridge between Portugalete and Areeta (Las Arenas). It's over 100 years old and transports people and cars across the river Nervión every few minutes.

Funicular de Artxanda

From Plaza del Funicular, near the new pedestrian bridge Zubizuri (White Bridge), this funicular takes you up the mountain of Artxanda from where you'll have a tremendous view over Bilbao and surroundings. The lower terminus lies below the now covered Matiko station.
