LONDON
 England . U.K.

Click on map to expand to full size!

Click here to expand map to full size!

 System

London UndergroundU-Bahn, S-Bahn & Tram in LONDONGreater London is home to some 7.5 million people. With a total route length of over 400 km, the London Underground is among the largest rapid transit systems in the world. But despite its name, less than 50% of the entire system is underground. The extensive network can be divided into two groups:

1) Subsurface lines which include the Circle Line, Hammersmith & City Line, Metropolitan Line and District Line (and previously also the East London Line). The different subsurface lines are interlaced, and the District Line actually represents a small metro network by itself. The subsurface lines run at low depth or on the surface and are among the oldest London Underground routes. Trains used on these lines are 2.85-2.95 m wide and 3.69 m high.

2) Tube lines which include the Northern Line, Central Line, Bakerloo Line, Piccadilly Line, Victoria Line, Jubilee Line and the Waterloo & City Line. In Central London, the tube lines run through deep tube tunnels, and trains are 2.64 m wide and only 2.88 m high. Outside Central London, many sections of the tube lines run on the surface. The tube lines represent about two thirds of the total length of the network. The entire London Underground is therefore also known as "the Tube".

Due to the different train and tunnel profiles, subsurface and tube lines can only share the same tracks on surface routes, which is the case on the section between Rayners Lane and Uxbridge, which is served by both the Metropolitan Line and the Piccadilly Line. Bakerloo Line trains share mainline tracks (now part of the London Overground network).

Besides the London Underground system proper, the Greater London area is served by the growing Docklands Light Railway, London Tramlink, London Overground plus numerous frequent suburban trains radiating from the various terminal stations and the cross-city Thameslink trains.

 History
- 19th Century - The Beginnings

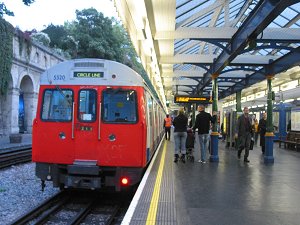

South KensingtonLondon is the mother of all the world's metro systems. Already in 1863 the first tunnel was opened in the city centre for a rail line between Paddington (originally called Bishops Rd) and Farringdon although trains of the Metropolitan Railway were operated initially with steam engines. In the following decades the line was extended east and west, and reached Hammersmith in 1864, South Kensington in 1868, Aldgate in 1876, and Tower of London in 1882. A northwestern branch was opened from Baker Street to Swiss Cottage in 1868 which was later extended in stages as far as Chesham by 1889.

In the meantime, between 1868 and 1871, the Metropolitan District Railway built a line between South Kensington and Mansion House. The entire circle was finished in 1884 with the Mansion House - Tower section. The District was also extended at both ends during the following decades and served Hammersmith in 1874, Richmond in 1877, Ealing Broadway in 1879 and Wimbledon in 1889.

The Metropolitan Line persists on the London Underground map (although part of the original line now is the Hammersmith & City Line) and has become a synonym all over the world for many different kinds of urban rail transport systems. This first line was so successful that very quickly a large network of underground and surface lines was built.

The first "real" metro line, however, was the City & South London Railway, between Stockwell and King William Street (later replaced by Bank) in the City of London, which opened on 4 Nov 1890 and which is part of today's Northern Line. This was the first underground line in the world using electric traction. In 1898, two years after Glasgow's cable drawn subway and Budapest's first electric underground line had opened, another short electric tube line started operating in London, this is today's Waterloo & City Line. From 1900 onwards, the Metropolitan and the District Railways began electrifying all their lines.

- 20th & 21st Century

Most of today's underground lines were built in the first half of the 20th century in deep level tube tunnels within the central area of London and extended above ground through the suburbs. Later, in the 1960s, the Victoria Line was an important addition to the network. Eventually the Jubilee Line complemented the current system in time for the Millennium celebrations.

Canary WharfWhile the expansion of the underground network almost came to a stop in the 1970s, a light rail system was built for the new housing developments in the former docklands area, the Docklands Light Railway, which was expanded underground under the River Thames to Greenwich and Lewisham (opened 20 Nov 1999 except Cutty Sark station).

In South London, around Croydon, a modern tram network was built which runs on street level in downtown Croydon and on old BR tracks on outer routes. The system opened for traffic in summer 2000.

In 1993 construction work for the south-east extension of the Jubilee Line began. The above ground section between Stratford and North Greenwich opened May 14, 1999 with the entire extension entering service in various stages until 22 Dec. 1999. Former Jubilee Line terminus at Charing Cross was closed on 20 Nov. 1999.

On 27 March 2008, the Piccadilly Line was extended to serve the new Terminal 5 at Heathrow Airport (2 km). 6 trains an hour now run via the Terminal 4 loop, and 6 trains go directly to Terminal 5. (Photos here)

On 12 Oct 2008, a new station was added on the Hammersmith & City Line, called Wood Lane and located between Latimer Road and Shepherd's Bush stations, the latter having been renamed Shepherd's Bush Market at the same time. (Photos here)

On 13 Dec 2009, the traditional Circle Line ceased to be a proper circular line, it now operates from Hammersmith to Edgware Road via the entire circle.

<< Top of Page | Fares | History | Lines | Future | Overground | Docklands Light Railway | Tramlink | Books | Links



 London Underground Lines
..
  Circle Line

26.5 km, 36 stations (serving Edgware Road twice, and two different Paddington stations)

Until 13 Dec 2009, the Circle Line was a real circular line (20.5 km), but now it is operated from Hammersmith to Edgware Road via Paddington, Edgware Road, Liverpool Street, Embankment, Victoria and High Street Kensington. On almost its entire route, the Circle Line shares tracks with other subsurface lines.

Circle Line Circle Line Circle Line
Blackfriars | Gloucester Road | Kings Cross/St. Pancras

Farringdon Kings Cross St. Pancras Bayswater
Farringdon | Kings Cross/St. Pancras | Bayswater

  Metropolitan Line

65.3 km, 34 stations

The Metropolitan Line's four western branches are operated as follows during off-peak hours (all trains stopping all stations), with a complex pattern of fast and semi-fast services during peak hours:
1) Aldgate - Uxbridge (4t/h)
2) Baker Street -
Uxbridge (4t/h)
2) Baker Street - Watford
(4t/h)
3) Baker St - Amersham
(2t/h)
4)
Aldgate - Chesham (2t/h)

The Watford branch was planned to be rerouted from a point north of the existing Croxley station to Watford Junction. The present Watford station would then be abandoned, but as of 2019, the project is suspended. For more details see www.croxleyraillink.com

Metropolitan Line Metropolitan Line Metropolitan Line
Baker Street | Ruislip | Watford

Barbican Baker Street Harrow-on-the-Hill

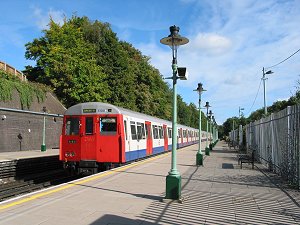

Croxley | Baker Street | Harrow-on-the-Hill

  Hammersmith & City Line

25.4 km, 28 stations

On almost its entire route, the Hammersmith & City Line shares tracks with other subsurface lines, although until Dec. 2009, the section between Hammersmith and Edgware Road had been exclusively served by the H&C for many decades.



Hammersmith & City Line Hammersmith & City Line Hammersmith & City Line
Hammersmith | Wood Lane | Baker Street

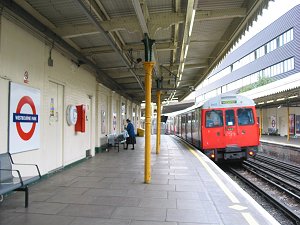

Hammersmith Farringdon Westbourne Park
Hammersmith | Farringdon | Westbourne Park

  District Line

64.5 km, 60 stations

What is known as the District Line is actually a network made of five lines:
1) Ealing Broadway - Upminster
2)
Richmond - Tower Hill (the Richmond - Gunnersbury section is shared by London Overground trains)
3) Wimbledon - Upminster
4) Wimbledon - Edgware Road
5) Kensington Olympia - High Street Kensington

District Line District Line District Line
Barons Court | Earls Court | Southfields

Bow Road Wimbledon Chiswick Park
Bow Road | Wimbledon | Chiswick Park

  Northern Line

62. 4 km, 54 stations

The central segment of the Northern Line incorporates what was the world's first electric underground railway, opened in 1890 between Stockwell and King William Street (near the present Monument station). The Northern Line probably has the most unconventional route layout worldwide, with three northern termini and one in the south, plus two different routes through the city centre, resulting in complex service pattern. From the northern branches, southbound trains continue through the city on alternating routes (indicated "via Bank" or "Via Charing Cross"), with some trains terminating at Kennington.

On 20 Sept 2021, the Northern Line was extended from the Kennington loop to Battersea Power Station with an intermediate station at Nine Elms, adding a 3.2 km branch.

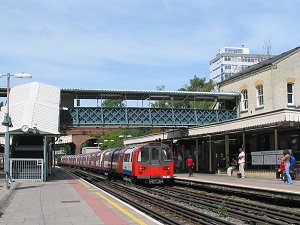

Finchley Central Goodge Street Clapham South
Finchley Central | Goodge Street | Clapham South

  Central Line

73.3 km, 50 stations

Opened in 1900, the Central Line is a cross-city tube line right through the heart of London, with two branches at the western end, and two at the eastern, where the Hainault loop is served frequently by trains via Newbury Park to Hainault, but on the Hainault - Woodford section there is a train only every 20 minutes.

Ealing Broadway Lancaster Gate Holborn
Ealing Broadway | Lancaster Gate | Holborn

  Waterloo & City Line

2.4 km, 2 stations

The Waterloo & City Line is a non-stop shuttle service between Waterloo railway station and the City of London. It only became part of the London Underground system in 1994.

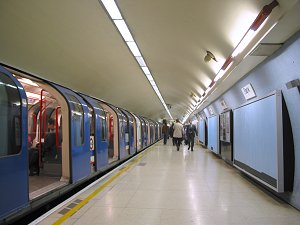

Waterloo Bank Bank
Waterloo | Bank | Bank

  Bakerloo Line

23.6 km, 25 stations

The Bakerloo Line is a typical tube line on its route through the city centre, opened in the first decade of the 20th century, but north of Queen's Park it shares tracks with London Overground services (Euston to Watford Jn), so the tube trains have to stop at platforms which have a height between the typical tube platforms and those of mainline railways.

Harrow & Wealdstone Maida Vale Lambeth North
Harrow & Wealdstone | Maida Vale | Lambeth North

  Piccadilly Line

65.6 km, 52 stations

The Piccadilly Line is a typical tube line from the early 20th century, although some of the western sections date back to 1877, when they were opened as part of the District and Metropolitan Railways. It runs from the north towards the west, where it splits into two branches. On the Uxbridge branch, tracks are shared with the Metropolitan Line between Rayners Lane and Uxbridge. Between South Kensington and Acton Town, the Piccadilly Line runs parallel to the District Line, but on separate tracks. On the Heathrow branch, trains either run around the Terminal 4 loop in a clockwise direction or go directly to Terminal 5.

Arnos Grove Hyde Park Corner Acton Town
Arnos Grove | Hyde Park Corner | Acton Town

  Victoria Line

21.3 km, 16 stations

The Victoria Line is a relatively new tube line built in the 1960s to create yet another north-south link through Central London and connect several railway termini. The Victoria Line is completely underground.

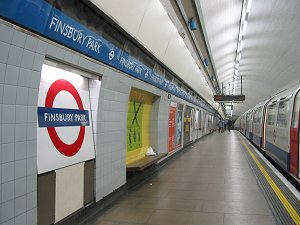

Finsbury Park Stockwell Warren Street
Finsbury Park | Stockwell | Warren Street

  Jubilee Line

37.2 km, 27 stations

The Jubilee Line is the latest addition to the London Underground network, although some sections on its northern part had opened in as early as 1879 as part of the Metropolitan Railway. The route to Stanmore was initially a branch of the Metropolitan Line when it opened in 1932, it was transferred to the Bakerloo Line in 1939, and was eventually integrated into the new Jubilee Line in 1979. The Jubilee Line was finally extended to Stratford via Canary Wharf in 1999. The underground stations along this extension are equipped with platform screen doors.

Canary Wharf London Bridge West Ham
Canary Wharf | London Bridge | West Ham

..
 Other Urban Rail Systems in Greater London
..
  Docklands Light Railway

34 km, 40 stations

The DLR is a rapid transit system in East London, developed since the 1980s. It runs mostly elevated or at grade, but includes two tunnels under the River Thames. In preparation for the 2012 Olympics, yet another 6 km leg was added to the system: the section from Canning Town to Stratford was taken over from the North London Railway, and a short extension to Stratford International Station was newly built (6 stations). This extension opened on 31 Aug 2011. The DLR is operated with driverless trains, although all trains have a steward onboard who is responsible for door closing. The basic line pattern is:
1) Bank - Lewisham
2) Bank - Woolwich Arsenal
3) Tower Gateway - Beckton
4) Stratford - Lewisham
5) Stratford International - Woolwich Arsenal / Beckton.

Crossharbour Old South Quay station Bank
Crossharbour | South Quay (old station) | Bank

  London Tramlink

28 km, 38 stops

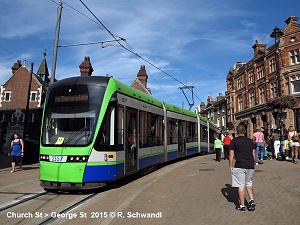

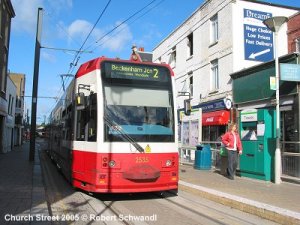

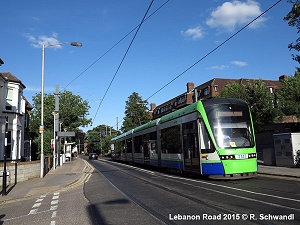

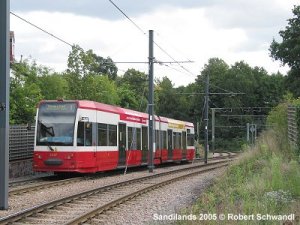

London's only tram system opened in 2000 as "Croydon Tramlink"; it uses some disused railway routes, but runs on-street through the Croydon town centre. Ever since it opened, extensions have been proposed as well as new lines in other parts of London, but none of these has come to fruition. More about Tramlink

Tramlink Tramlink East Croydon Tramlink

  London Overground

The London Overground network was launched in November 2007, after the North London Line (Richmond to Stratford), the West London Line (Clapham Junction to Willesden Junction), the Gospel Oak to Barking Line, and the Watford Junction to Euston Line, all previously operated by Silverlink, had been taken over by Transport for London in order to create an S-Bahn/RER-style service by incorporating the upgraded East London Line and establishing an orbital service in the mid-term.

Overground Shoreditch High Street Overground Dalston Junction Overground Imperial Wharf
Shoreditch High Street | Dalston Junction | Imperial Wharf

The East London Line, formerly part of the London Underground network, was closed in December 2007 to allow for its upgrading and extension north to Highbury & Islington (connection with North London Line) and south on existing tracks to West Croydon, Crystal Palace and Clapham Junction. Initially, the line ran from Dalston Junction in the north to New Cross, Crystal Palace and West Croydon in the south. Along the northern stretch, there are four new stations: Shoreditch High Street (replacing the original Shoreditch station, which closed permanently on 9 June 2006), Hoxton, Haggerston, Dalston Junction (adjacent to Silverlink's Dalston Kingsland). In 2011 it was extended via Canonbury to Highbury & Islington. On the southern extension the Overground uses existing railway lines shared with other services.

09 June 2006: Shoreditch Station closed (ELL)
09 Dec 2006: Stratford – North Woolwich closed for the DLR extension (NLL)
11 Nov 2007: London Overground introduced for NLL, WLL, GOBLIN and Watford DC services
22 Dec 2007: London Underground East London line (Whitechapel – New Cross / New Cross Gate) closed for conversion
28 Sept 2008: Shepherd's Bush station opened (WLL)
15 April 2009: Stratford Overground platforms relocated (NLL)
27 Sept 2009: Imperial Wharf station opened (WLL)
20 Feb 2010: Gospel Oak – Stratford closed (NLL)
27 April 2010: Dalston Junction – New Cross/New Cross Gate (ELL)
23 May 2010: New Cross Gate – Crystal Palace/West Croydon (ELL)
01 June 2010: Gospel Oak – Stratford reopened (NLL)
28 Feb 2011: Dalston Junction – Highbury & Islington
09 Dec 2012: Clapham Junction – Dalston Junction (via Surrey Quays) (SLL)
31 May 2015: Liverpool Street – Chingford / Enfield Town / Cheshunt (LVL) and Romford – Upminster via Emerson Park
18 July 2022: Barking – Barking Riverside (4.5 km)

OVERGROUND ROUTES:

East London line (ELL): Highbury & Islington – Crystal Palace / New Cross / West Croydon
North London line (NLL): Stratford – Richmond
South London line (SLL): Clapham Junction – Dalston Junction (via Surrey Quays)
West London line (WLL): Stratford / Willesden Junction – Clapham Junction
Gospel Oak to Barking line (GOBLIN): Gospel Oak – Barking (until spring 2020 diesel service)
Watford DC line: Euston – Watford Junction
Lea Valley lines (LVL): Liverpool Street – Chingford / Enfield Town / Cheshunt
Romford – Upminster

Overground Canada Water Overground Wapping Hoxton
Canada Water | Wapping | Hoxton

  Elizabeth Line

Similar to the Paris RER lines, the Elizabeth Line provides a cross-city service from east to west through central London. Initially labelled Crossrail, preliminary works had begun in 2002, but real construction did not get underway until 2010, with completion once scheduled for 2018. The project was delayed again and again until the line finally opened in May 2022, albeit without through service onto the western branches (Reading, Heathrow) and without the eastern leg to Shenfield. Instead, trains initially only serve the newly-built sections, including the tunnel through central London and the eastern suburbs on the branch to Abbey Wood. The rest will follow in the next months.

Prior to the final introduction of the Elizabeth Line, TfL Rail had been introduced between Liverpool Street and Shenfield on 31 May 2015.

[Project Website]

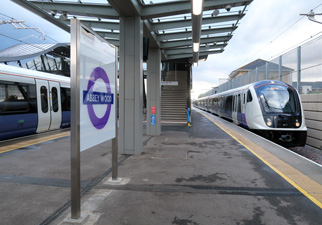

24 May 2022: Paddington - Abbey Wood
24 Oct 2022: + Bond Street
06 Nov 2022: through service launched: trains from Heathrow and Reading continue their journey into Central London and beyond.

Elizabeth Line Elizabeth Line Elizabeth Line

Elizabeth Line Elizabeth Line Elizabeth Line

More Elizabeth Line photos here!


 Projects

- Bakerloo Line Extension (BLE) - long-term project from Elephant & Castle towards Lewisham [Project Website]

- Crossrail2 would create a new link between Wimbledon/Clapham Junction in the south and Tottenham Hale/Seven Sisters in the north [Project Website]



<<< Top of Page | Fares | History | Lines | Future | Overground | Docklands Light Railway | Tramlink | Books | Links

 Books

London Underground Album 1Andrew Phipps :

LONDON UNDERGROUND ALBUM Vol. 1: Subsurface Lines

Circle, Hammersmith & City, Metropolitan and District Lines

450 colour images, network maps, Text deutsch/English, ISBN 978 3 936573 71 8, Oct 2022, EUR 19.50

More info

U-Bahn, S-Bahn & Tram in LONDON

Andrew Phipps :

U-BAHN, S-BAHN & TRAM IN LONDON

Urban Rail in the British Capital. London Underground - Docklands Light Railway - London Overground - National Rail - London Trams

300 colour images, detailed network maps, Text deutsch/English, ISBN 978 3 936573 61 9, May 2021, EUR 19.50

More info





Elizabeth LineSpecial Edition:

Robert Schwandl:

A Pictorial Guide to the Elizabeth Line

48 pages, approx. 100 colour images, Central London map, Text English, June 2022

Available as a print-on-demand edition!

For more information click here!

Tram Atlas Britain & IrelandRobert Schwandl:

TRAM ATLAS BRITAIN & IRELAND

Birmingham, Blackpool, Dublin, Edinburgh, Manchester, Nottingham, London (Croydon) & Sheffield
+ London Underground, Docklands Light Railway, Tyne-and-Wear Metro, Liverpool Merseyrail & Glasgow Subway + Tram Museums

Numerous colour images, detailed network maps, Text deutsch/English, ISBN 978 3 936573 45 9, Nov. 2015, EUR 19.50

More info



For a complete list of books about the London Underground and other urban rail systems in London click here!
