HELSINKI
 Finland

HELSINKI Metro line map © UrbanRail.Net

Helsinki Tram Helsinki Tram

 METRO

Metro logo 2003 © UrbanRail.NetHelsinki (Helsingfors in Swedish) is the capital of Finland with 610,000 inhabitants and some 1.4 million in the metropolitan area (incl. Espoo and Vantaa). The suburbs are spread out along the coast and to the north, whereas jobs are mainly concentrated in the city centre. On the map above, black names are Finnish, whereas grey names are in Swedish.

The Helsinki Metro links the city centre to the eastern suburbs (21 km - 17 stations, two branches). 4.9 km are in a tunnel through the city centre. The bigger part of the line (Kamppi - Itäkeskus) was opened between 1982 and 1983, in 1986 the line was extended to Kontula and in 1989 further out to Mellunmäki. In the city centre one more station was added to reach Ruoholahti. The branch from Itäkeskus (4 km) east to Vuosaari opened in Sept. 1998. This stretch runs underground from Itäkeskus to Puotila and further until it reaches Vartiokylänlahti Bay which is crossed on a bridge. From there the line continues in a cutting. The underground stations were equipped as air raid shelters with an overall capacity for 21,000 people. Underground stations in the city centre are built in deep rock, three stations along the eastern section (Herttoniemi, Itäkeskus, Puotila) lie just below ground, with an entrance building on surface level. The remaining stations are on the surface and are generally covered to protect passengers during harsh winters. See all stations below >

Travelling time between Ruoholahti and Mellunmäki or Vuosaari is 21-22 minutes (every other train goes to Vuosaari). All stations (9 underground, 8 above ground) are fully accessible by wheelchair. Station platforms are 135 m long. The Metro has 1524 mm gauge (same as state railways) and third rail power supply (750V dc). The Metro control centre is situated at Hakaniemi station. There are two different types of train in service, the original M100-series (1977-1984, built by Valmet / Strömberg, Finland) and the newer M200-series (2000-2001, built by Bombardier). Both types of cars cannot be coupled. A 2-car unit is 44.2 m long, trains are 3.2 m wide. Each car has 3 doors on either side. A full length train consists of 6 cars.

Total length 21.1 km (of which 6.5 km are in tunnel)

 History

01 June 1982: Hakaniemi - Itäkeskus (rush hour traffic)
01 July 1982: Rautatientori (Railway Station) - Itäkeskus
03 Aug 1982: official opening (full-time traffic)
01 March 1983: Rautatientori - Kamppi
01 Sept 1984: Sörnäinen station added
21 Oct 1986: Itäkeskus - Kontula
01 Sept 1989: Kontula - Mellunmäki
16 Aug 1993: Kamppi - Ruoholahti
01 Mar 1995: Kaisaniemi station added
31 Aug 1998: Itäkeskus - Vuosaari
01 Jan 2007: Kalasatama station added

Tram  Atlas Nordeuropa Metros in Scandinavia
 Projects

A western fully underground extension to the neighbouring city of Espoo, the so-called Länsimetro/Västmetron, has been under construction since late 2009 for completion in 2015. The new section is 13.9 km long and includes eight stations. While the new estension is being built for automatic driverless operation, the existing line is being retrofitted with platform screen doors and an automatic control system (Trainguard MT) supplied by Siemens. More

In a further stage, the western route may be extended to Kivenlahti/Stensvik with five more stations.



 Helsinki Metro Stations

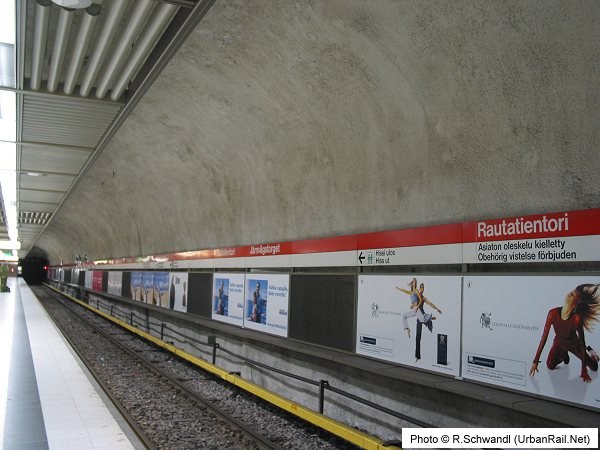

Ruoholahti  2003 © UrbanRail.Net Kamppi 2003 © UrbanRail.Net Rautatientori  2003 © UrbanRail.Net Kaisaniemi 2003 © UrbanRail.Net
Ruoholahti | Gräsviken  1.2km > Kamppi | Kampen  0.5km > Rautatientori | Järnvägstorget  0.6km > Kaisaniemi | Kajsaniemi  0.9km >

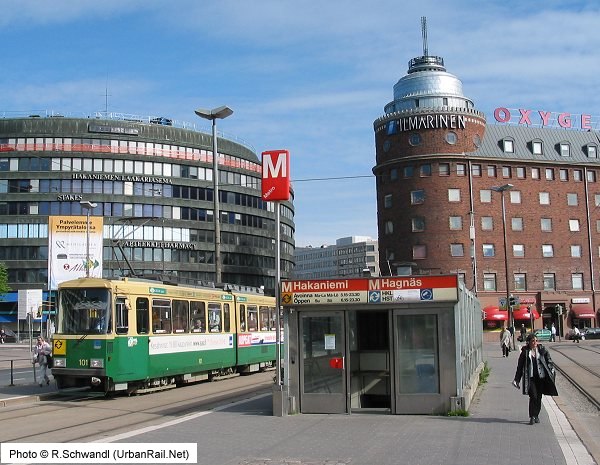

Hakaniemi  2003 © UrbanRail.Net Sörnäinen 2003 © UrbanRail.Net Kalasatama Kalasatama
Hakaniemi | Hagnäs  0.9km > Sörnäinen | Sörnäs  1.0km > Kalasatama | Fiskhamnen Kalasatama | Fiskhamnen 1.9km >
Kulosaari 2003 © UrbanRail.Net Herttoniemi 2003 © UrbanRail.Net Siilitie 2003 © UrbanRail.Net Itäkeskus 2003 © UrbanRail.Net
Kulosaari | Brändö  1.4km > Herttoniemi | Hertonäs  1.4km > Siilitie | Igelkottsvägen  2.0km > Itäkeskus | Östra centrum  1.9km/1.0km >
  Myllypuro 2003 © UrbanRail.Net Kontula 2003 © UrbanRail.Net Mellunmäki 2003 © UrbanRail.Net
Northern branch:
1.9km > Myllypuro | Kvarnbäcken  1.4km > Kontula | Gårdsbacka  1.6km > Mellunmäki | Mellungsbacka
  Puotila 2003 © UrbanRail.Net Rastila 2003 © UrbanRail.Net Vuosaari 2003 © UrbanRail.Net
Eastern branch:
1.0km >  Puotila | Botby gård  1.9km >  Rastila | Rastböle  1.2km > Vuosaari | Nordsjö
All

All photographs 2003 © UrbanRail.Net (except Kalasatama 2007 © Jouko Ketola)

 TRAM

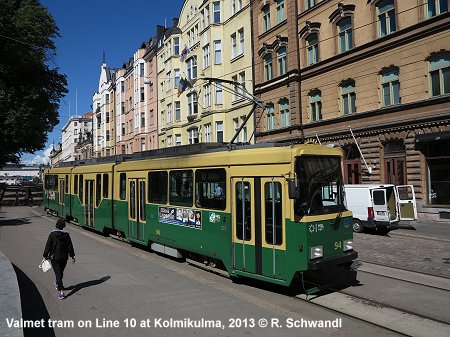

Helsinki TramApart from the Metro, HKL operates a 1000 mm tram network (45 km), which covers all areas in the city centre. More.

 SUBURBAN RAIL

From Helsinki's Central Railway Station (metro's Rautatientori/Järnvägstorget station), three commuter rail lines operate every 10-20 minutes providing local and express services. The lines to Tikkurila/Kerava/Riihimäki and to Leppävaara/Espoo/Karjaa follow mainline tracks, with a dedicated pair of suburban tracks available to Leppävaara and Kerava. The line to Vantaankoski (M, 15km) runs on exclusive tracks; it is currently being extended to the Airport in a loop that will join up with the northeastern main line near Tikkurila.





 Links

Helsinki City Transport (HKL) Official Site

Journey Planner

Länsimetro (Western extension - official site)

VR (Finnish Railways - Commuter Trains)

Helsinki Metro at Wikipedia

U-Bahn Helsinki bei Wikipedia.de

Helsinki Tram Helsinki Tram at UrbanRail.Net

Your webmaster's personal impressions on the different urban rail systems in Helsinki (16 June 2013)




Tram  Atlas Nordeuropa Metros in Scandinavia

Thanks to J & T Pertilä and Jani Patokallio!




2004 © UrbanRail.Net by Robert Schwandl.
