Dubai Metro Map ©  UrbanRail.Net


The current population in the city of Dubai is 863,000 with some 2.3 million in the entire Dubai Emirate.

Construction on the first stage of Dubai's Metro began in 2005, with the first section of the Red Line opened on 09-09-2009. The Green Line was inaugurated exactly two years later, on 09-09-2011. The Red Line and the Green Line intersect twice, at Union Square and at Khalid Bin Al Waleed (BurJuman Centre).

Each of the 87 driverless trains (Thales operating system) comprises five cars, with the first car being divided into first class (Gold Class) and a section reserved for women and children.

Metro stations were designed to four different themes: earth, water, air and fire.

 Red Line

52.1 km (4.7 km underground) - 29 stations (24 elevated, 4 underground and 1 at ground level)

09-09-2009: Rashidiya - Nakheel Harbor & Tower (with only 8 intermediate stations)
04-01-2010: Burj Dubai station added
30-04-2010: Nakheel Harbor & Tower - Ibn Battuta
     + Dubai Marina, Dubai Internet City, Emirates Towers, Al Karama, Airport Terminal 1 and Emirates stations opened
15-05-2010: GGICO, World Trade Centre and Noor Islamic Bank stations opened
15-10-2010: Jumeirah Lake Towers (JLT), Nakheel, Sharaf DG, First Gulf Bank and Business Bay stations opened
11-03-2011: Ibn Battuta - Jebel Ali [now UAE Exchange] (without intermediate stations)
12-12-2012: Danube station added
30-09-2013: Energy station added

 Green Line

22.5 km (7.9 km underground) - 18 stations (10 elevated and 8 underground)

09-09-2011: Etisalat - Dubai Health Care City
01-03-2014: Dubai Health Care City - Creek

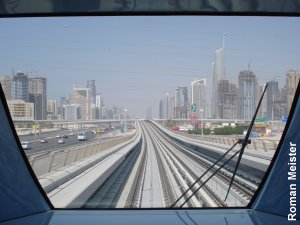

Dubai Metro Red Line Dubai Metro Red Line Dubai Metro Red Line Dubai Metro Red Line Dubai Metro Red Line

 Metro Projects

The second stage of the metro project includes two more lines and extensions to the Red Line:

- Blue Line:
- Purple Line: 49 km with only 8 stations, it will function as an express link between Dubai International Airport and Jebel Ali International Airport.



14.6 km with 19 stations planned, also known as "Al Sufouh Tramway" - Map

- entire line will be equipped with APS ground-level power supply
- most of southern loop through Jumeirah Beach elevated
- 44 m long, 7-section Citadis 402trams from Alstom
Al Sufouh - Jumeirah Beach (8 km + 2.6 km depot access, with 11 stations, equipped with platform screen doors) opened 11 Nov. 2014


 Palm Jumeirah Monorail

- 5.45 km monorail line
- opened 06 May 2009 from Gateway Towers to Atlantis (without intermediate stops)
- planned to be extended to link up with Metro system

Monorail Palm Jumeirah Monorail Palm Jumeirah Monorail Palm Jumeirah
