NEW YORK CITY
 New York . USA

New York City Subway Map © UrbanRail.Net - Click to expand<<< New Jersey
Click here to expand to full size!

Lines and Routes | History | Projects | PATH | Other Rail Transit | Books | Links

 System

Subway (N) Queensboro PlazaThe entire network consists of 21 lines, plus 3 shuttle services. Total length is 337 km (223 km underground), or 418 km if 4-track sections with regular express service are counted twice. 51 km are 3-track with express service during rush hour in the peak direction. underground) with 468 stations (153 elevated, 38 at grade or in an open cutting and 277 underground). The deepest station on the network is 191 St (Lines 1/9) which lies 60 m below street level. The New York City Subway operates around the clock, about every 4 min during rush hours (06:30-09:30 and 15:30-20:00) and every 20 min after midnight.

Numbered lines correspond to the older small-profile IRT (Interborough Rapid Transit) network, whereas letter-coded lines were once the BMT (Brooklyn-Manhattan Transit) or the IND (Independent Subway) network. The three systems were merged in 1940, but the larger trains of the BMT/IND system cannot operate on the IRT routes.



Vignelli Transit Maps
Subways & Light Rail in the USA 1: East Coast
 Lines
...
7th Avenue Line

 (1) Van Cortlandt Park-242 St (Bronx) <> South Ferry (Manhattan) - Broadway/7th Avenue Local
 (2) Wakefield (Bronx) <> Brooklyn College-Flatbush Av (Brooklyn) - 7th Avenue Express
 (3) Harlem-48 St (Manhattan) <>Van Siclen Av (Brooklyn)- 7th Avenue Express

Lexington Avenue Line

 (4) Woodlawn (Bronx) <> Crown Hts-Utica Av (Brooklyn) - Lexington Avenue Express
 (5) Eastchester-Dyre Av (Bronx) <> Bowling Green (Manhattan)
- Lexington Avenue Express
 (6) Pelham Bay Park (Bronx) <> Brooklyn Bridge-City Hall (Manhattan)
- Lexington Avenue Local

Flushing Line

 (7) Times Sq-42 St (Manhattan) <> Flushing Main St - Flushing Local

8th Avenue Line

 (A) Inwood-207 St (Manhattan) <> Ozone Park-Lefferts Blvd or Far Rockaway-Mott Av (Queens) - 8th Avenue Express
 (
C) Washington Hts-168 St (Manhattan) <> Euclid Av (Brooklyn) - 8th Avenue Local
 (E) Jamaica Center-Parsons/Archer (Queens) <> World Trade Center (Manhattan) - 8th Avenue Local

6th Avenue Line

 (B) Beford Park Blvd. ( Bronx)] - 145 St (Manhattan) <> Coney Island Stillwell Av (Brooklyn)
 (D) Norwood-205 St ( Bronx) <> Coney Island Stillwell Av (Brooklyn)
 (F) Jamaica-179 St (Queens) <> Coney Island-Stillwell Av (Brooklyn) via 63 St Connector and Jay St-Borough Hall (Brooklyn)
 (M) Forest Hills-71 Av (Queens) <> Metropolitan Av via Queens Plaza, 5th Av/53 St. and Broadway/Lafayette St.

Brooklyn-Queens Crosstown Line

 (G) Court Square (Queens) <> Church Ave (Brooklyn)

Nassau Street/Jamaica Line

 (J) Jamaica Center-Parsons/Archer (Queens) <> Broad St (Manhattan) - Nassau Street Local
 (Z)
Jamaica Center-Parsons/Archer (Queens) <> Broad St (Manhattan) - Nassau Street Express operates only during rush hours

14th Street - Canarsie Line

 (L) 8th Avenue (Manhattan) <> Canarsie-Rockaway Pkwy (Brooklyn)

Broadway Line

 (N) Astoria-Ditmars Blvd (Queens) <> Coney Island-Stillwell Av (Brooklyn) via Pacific St (Brooklyn)
 (R) Forest Hills-71 Av (Queens) <> Bay Ridge-95 St (Brooklyn) via Pacific St (Brooklyn)
 (Q)
Astoria-Ditmars Blvd (Queens) <> Coney Island-Stillwell Av (Brooklyn) via 57 Street/7th Avenue (Manhattan)

Shuttle Lines

 (S) Grand Central <> Times Sq-42 St (Manhattan)
 (S) Franklin Av <> Prospect Park (Brooklyn)
 (S) Broad Channel <> Rockaway Park-Beach 116 St (Queens)



 HISTORY (Manhattan Trunk Routes and Recent Openings)

27 Oct 1904: City Hall - Grand Central/42 St Times Sq/42 St 145 St (Broadway) [IRT]
09 Jan 1908: First East River crossing between Bowling Green and Borough Hall
22 June 1915: Grand Central Vernon Blvd/Jackson Ave [IRT Flushing Line]
04 Sept 1917: 14St/Union Sq Manhattan Bridge DeKalb Ave [BMT Broadway Subway]
05 Jan 1918: Prince St Whitehall St/South Ferry
                  14St/Union Sq Times Sq/42 St [BMT Broadway Subway]
17 July 1918: Original IRT Subway split into 7th Avenue/Broadway and Lexington Avenue Lines
04 Aug 1918: Essex St Chambers St [BMT Nassau Street Line]
30 June 1924: 6th Ave (14 St) Montrose Ave [BMT 14th Street-Canarsie Line]
30 May 1931: Chambers St Broad St [BMT Nassau Street Line]
10 Sept 1932: Inwood/207 St Chambers Street [IND 8th Avenue Subway]

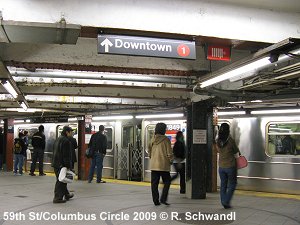

15 Dec 1940: West 4 St/Washington Sq 59 St/Columbus Circle [IND 6th Avenue Subway]
.....
11 Dec 1988: Kew Gardens Jamaica Center/Parsons/Archer (E)
11 Dec 1988: 121 St (Jamaica Ave) Jamaica Center/Parsons/Archer (J/Z)
29 Oct 1989: 57 St (6 Ave) 21 St/Queensbridge (F)
16 Dec 2001: 21 St/Queensbridge Jackson Heights/Roosevelt Ave (F)
16 Mar 2009: South Ferry new station

To find out more about the history of the New York Subway purchase our book

SUBWAYS & LIGHT RAIL in the U.S.A. - Vol. 1 - East Coast

or visit NYC Subway Resources.

Subways & Light Rail in the USA 1: East Coast

 PROJECTS

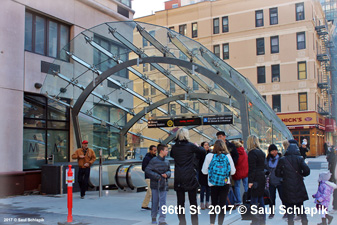

1) Second Avenue Subway:
For many decades a new route has been planned along 2nd Avenue. In spring 2007, the first phase of construction was started
from the present NQR station at 57th Street/7th Avenue (Broadway Line) to 96th Street on 2nd Avenue. The tunnel between 57th Street and Lexington Av/63 St stations already exists, so the new construction actually only includes the section between Lexington Av/63 St and 96th Street. The first phase is scheduled for completion in 2014. In a second stage, the northern extension to the hub at 125th Street will be built. Find out details here.

2) Line 7 is being extended by 2.4 km from its current terminus at Times Square/7th Avenue, westward under 41st St and south under to 11th Avenue to a new terminus at 34th Street in the new development zone of the Hudson Yards. An intermediate station may be built later at 41 St/10 Av. Groundbreaking took place in Dec. 2007. Find out details here.

 OTHER RAIL TRANSIT IN THE NEW YORK METROPOLITAN AREA
..
  PATH

PATH at WTC © Robert BarrowsPATH System mapPATH (Port Authority Trans-Hudson) links central Manhattan to Jersey City and Newark in New Jersey: PATH operates like a metro (every few minutes during rush hours), 24 hours a day. Opened in 1908, the total length of the network is 22.2 km with 11.9 km underground (including two tunnel routes under the Hudson River). The PATH system is operated by the Port Authority of New York and New Jersey. More


After 11 Sept 2001 service was interrupted between NYC and New Jersey. Service to Exchange Place station was resumed on 29 June 2003, and from 23 Nov 2003 trains have been back to a provisional World Trade Center station.

  Staten Island Railway

This 22 km railway line runs along the eastern side of Staten Island, New York's fifth borough. Except for a short tunnel near St. George the entire line is aboveground and has 22 stations. At the northern terminus it connects to the ferry from Manhattan (near South Ferry station). Subway MetroCards and tokens are valid on this line.



  LIRR (Long Island Rail Road)
The Long Island Rail Road serves almost any part of Long Island with various branches spreading out east from Jamaica station in Queens. From this station some trains run west to Atlantic Terminal (Flatbush Av.) in downtown Brooklyn, a few terminate in Long Island City in Queens, but most run through to Manhattan's Penn Station. A second route to Manhattan (Grand Central) - East Side Access - is currently under construction. Find out details here.
  Metro-North
The Metro-North Commuter Railroad operates from Grand Central station and serves the areas north of New York City with one branch reaching as far as New Haven in Connecticut. There is a major interchange with subway lines at 125 St and 12 stations lie in the Bronx. MetroCards are not valid and fares are according to distance.
  AirTrain JFK
Air Train © Robert BarrowsThis 13 km long driverless peoplemover system opened at JFK Airport in Queens on 17 Dec. 2003. It links all airport terminalsthe to Howard Beach/JFK Airport subway station (A) to Jamaica LIRR station and Sutphin Blvd-Archer Av subway station (E, J/Z). Find out more here!
  Light Rail & Commuter Rail in New Jersey

New Jersey Transit (NJT) operates two light rail systems in Northern New Jersey, the Newark Light Rail and the Hudson-Bergen Light Rail, as well as an extensive network of commuter rail lines from its Hoboken Terminal on the western shore of the Hudson River, which can be reached from Manhattan by PATH. Some NJT trains run through to Penn Station in Manhattan. For more on urban rail in New Jersey click here!
