L9 Sud Zona Universitària – Aeroport T1
  L10 Sud Collblanc – ZAL | Riu Vell
 UrbanRail.Net > Europe > Barcelona

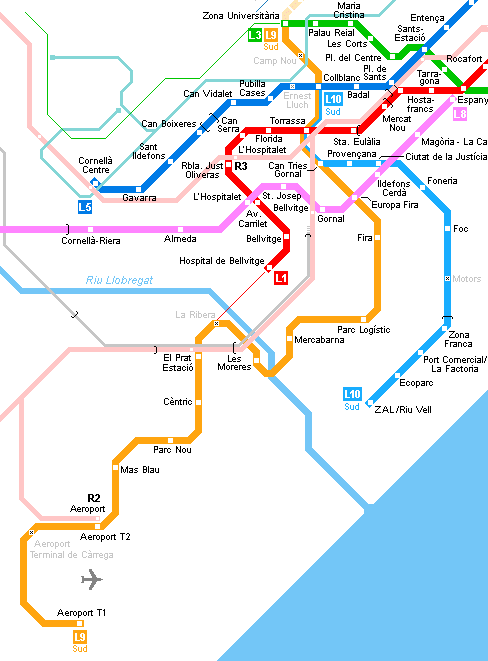

Barcelona metro line L9 Sud

Click on photo to view more of each station!

BLOG: Read your webmaster's impressions of L9 Sud (Feb 2016) here!

 Zona Universitària


 Camp Nou

To open together with the unbuilt central part of the line (~2023)







 Can Tries | Gornal



Since Sept 2018, junction for line L10 to Zona Franca

 Europa | Fira L8




 Parc LogÝstic





 Les Moreres


 La Ribera

To open when area around the station sees some urban development


 El Prat Estaciˇ

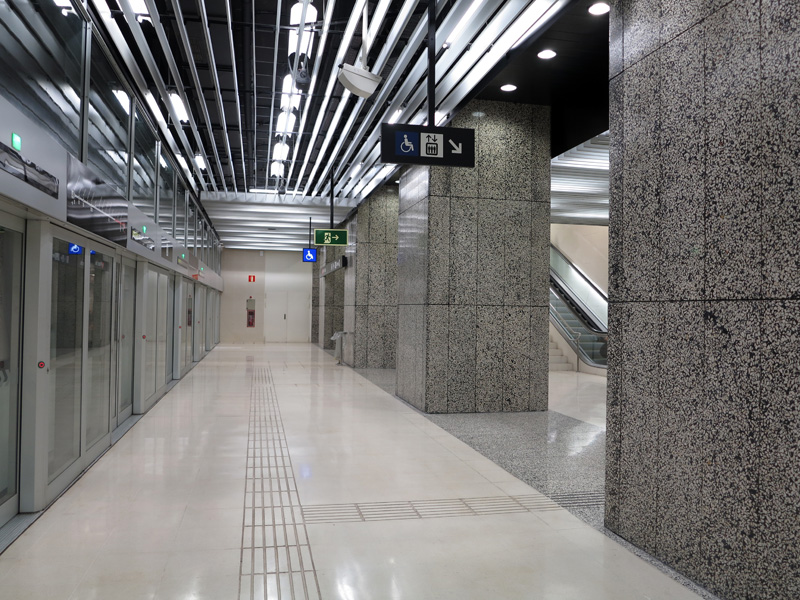

 Parc Nou

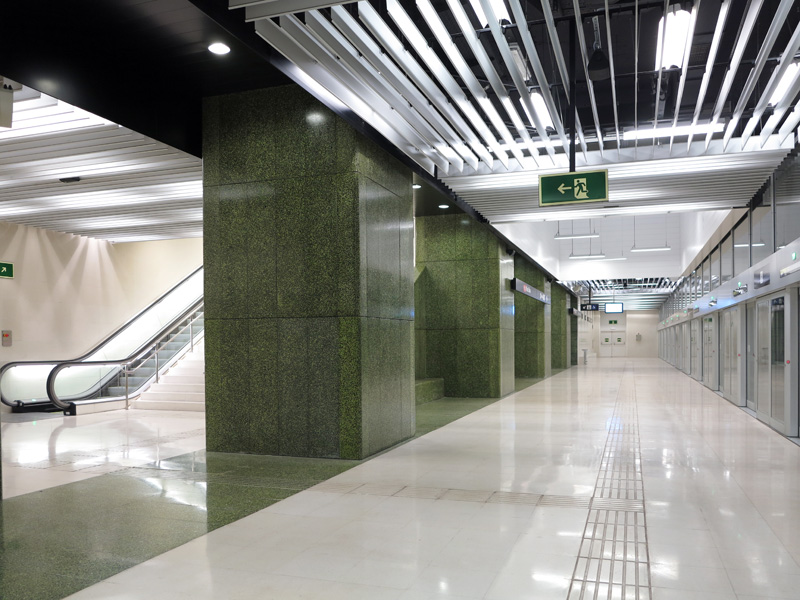

 Mas Blau


 Aeroport T2


Station serving old airport terminal with some low-cost carriers

 Aeroport Terminal de Càrrega   To open when demand grows
 Aeroport T1


Station serving new airport terminal with major airlines

 Provençana   02-03-2019
 Ciutat de la Justícia L8


Interchange with L8 implies a short walk on street level

 Foneria   08-09-2018


 Foc   08-09-2018


 Motors   (2026)
 Zona Franca


First elevated metro station in Barcelona

 Port Comercial   07-11-2021
 Ecopark   07-11-2021
 ZAL/Riu Vell   07-11-2021


Special Features of Line L9/L10 Sud:

Total length (in operation): 20 km, 15 stations (L9 Sud) + 8.6 km, 8 stations (L10 Sud)

European standard track gauge of 1435 mm

Operated in driverless mode

Eventually Line 9/10 will run like a semicircular line from the Airport and Passeig de la Zona Franca to Zona UniversitÓria, further on to SarriÓ and Lesseps and via Guinardˇ and Sagrera-Meridiana to the planned Sagrera AVE Railway Station. Then north to Bon Pastor and under the Bes˛s river splitting into two branches, one to Santa Coloma (Can Zam) and one to Badalona (Gorg - L2). Construction from Sagrera-Meridiana (L1, L5) north to Can Zam and Gorg began in late 2001. L9/10 is being excavated by tunnel boring machines at great depth, with a 12 m diameter tunnel, which allows trains to run on top of each other. Most stations will be located inside this tunnel and be accessible by lifts. The line is operated in driverless mode and the stations are therefore equipped with platform screen doors. Part of the Zona Franca leg in the south will be elevated. The project has repeatedly been modified, especially in the airport area. The first section of this 46.6 km long line was due to open in 2005 from Fondo to Can Zam, but was only brought into service in Dec. 2009, with the second of the two northern branches following in 2010. The isolated L9 Sud began operation in Feb. 2016, followed by the first section of L10 Sud in Sept 2018.

Line 9
Photo © DavoR

L9 Alstom





2009 © UrbanRail.Net (Robert Schwandl)
