U1 Uhlandstraße - Warschauer Straße
 UrbanRail.Net > Europe > Berlin




Total length: 8.9 km (3.1 km underground) - 13 stations

Small-profile line with ~105 m long platforms (mostly 8-car trains of A3 stock in service).

Line U1 starts underground at Uhlandstraße below Berlin's famous Kurfürstendamm. While the section to Wittenbergplatz hat already been opened in 1913, an additional station was added in 1961 to provide transfer to the new north-south line U9. At Nollendorfplatz, line U1 shares the 4-track underground station with lines U3 and U4 (between Wittenbergplatz and Nollendorfplatz, lines U1 and U3 share tracks). Between Nollendorfplatz and Gleisdreieck (upper level), line U1 runs along the so-called 'relief route' opened in 1926 to allow a direct line from Kreuzberg towards Wittenbergplatz, after the triangular junction at Gleisdreieck had been rebuilt into a two-level crossing in 1912. From Gleisdreieck to Warschauer Straße, line U1 uses the elevated route as opened in 1902, Berlin's oldest metro line. Due to the erection of the Berlin Wall, the line was curtailed at Schlesisches Tor between 1961 and 1995.

Between 1993 and 2004, the line number 'U1' was used for services running from Schlesisches Tor (from 1995 Warschauer Straße) to Krumme Lanke, while the branch to Uhlandstraße was served by line 'U15', sharing tracks with line 'U1' between Wittenbergplatz and Schlesisches Tor (from 1995 Warschauer Straße).

18-02-1902: [Potsdamer Platz U2] - Möckernbrücke - Stralauer Thor
17-08-1902: Stralauer Thor - Warschauer Brücke (now Warschauer Straße)
03-11-1912: + Gleisdreieck station
12-10-1913: Wittenbergplatz - Uhlandstraße
24-10-1926: Gleisdreieck - Nollendorfplatz (via Kurfürstenstraße)
.........1945: Osthafen (formerly Stralauer Thor) closed after war damage
02-09-1961: Kurfürstendamm station
 1961-1995: Warschauer Straße station closed





U1 Stammstrecke durch Kreuzberg



Alexander Seefeldt:

Berliner U-Bahn-Linien: U1 - Stammstrecke durch Kreuzberg.

- Okt. 2016, ISBN 978 3 836573 51 0 More Info

    STATIONS
   Uhlandstraße

12-10-1913



U-Bahnhof Uhlandstraße U1

U-Bahnhof Uhlandstraße U1

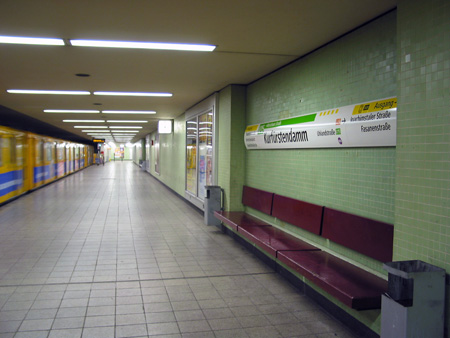

   Kurfürstendamm

02-09-1961

Station with side platforms; added in 1961 to provide transfer to the new north-south line U9.



U-Bahnhof Kurfürstendamm U1
   Wittenbergplatz

11-03-1902; rebuilt 1913

5-track junction, with line U1 sharing the westbound northernmost track with line U3, and stopping at the southernmost track in the eastbound direction. Station with a rather large entrance building from 1913.



U-Bahnhof Wittenbergplatz U1

U-Bahnhof Wittenbergplatz U1

   Nollendorfplatz

24-19-1926

4-track double-deck underground station, with line U1 stopping on the northern side of the respective island platforms, eastbound on the upper level (track shared with line U3), and westbound on the lower.



U-Bahnhof Nollendorfplatz U1
   Kurfürstenstraße

24-19-1926

To the east of Kurfürstenstraße station, line U1 emerges from the tunnel on an elevated enclosed structure, and then continues elevated to its terminus.



U-Bahnhof Kurfürstenstraße U1
   Gleisdreieck

03-11-1912

2-level station added on the site of the original triangular junction, with line U1 stopping on the upper level.



U-Bahnhof Gleisdreieck U1
   Möckernbrücke

18-02-1902

side platforms; station separated from line U7 by the Landwehrkanal, transfer is via a enclosed bridge.



U-Bahnhof Möckernbrücke U1
   Hallesches Tor

18-02-1902

side platforms floating above Landwehrkanal



U-Bahnhof Hallesches Tor U1

U-Bahnhof Hallesches Tor U1

   Prinzenstraße

18-02-1902

side platforms; entrance building on the southern side added in 1991.



U-Bahnhof Prinzenstraße U1
   Kottbusser Tor

18-02-1902, relocated in 1929

Originally located slightly further east with typical side platforms. Relocated to its present location with an island platform to provide convenient interchange with line U8.

U-Bahnhof Kottbusser Tor U1
   Görlitzer Bahnhof

18-02-1902

side platforms; preserved mostly in its original form.



U-Bahnhof Görlitzer Bahnhof U1

U-Bahnhof Görlitzer Bahnhof U1

   Schlesisches Tor

18-02-1902

side platforms; entrance and platform side walls made of bricks.

From 1902 until World War II there was another station between Schlesisches Tor and Warschauer Straße, called Stralauer Thor (later Osthafen) and located on the right bank of the river.



U-Bahnhof Schlesisches Tor U1

U-Bahnhof Schlesisches Tor U1

U-Bahn Berlin Oberbaumbrücke

   Warschauer Straße

S-Bahn Tram

18-02-1902

Between 1961 and 1995, out of service due to Berlin Wall running along the Spree River in this area.

Station may be relocated further east to provide improved transfer to the S-Bahn.



U-Bahnhof Warschauer Straße U1

U-Bahnhof Warschauer Straße U1
