UrbanRail.Net > Europe > Athens

Athens Metro Line 3Line 1Line 2


 Line 3 Aghia Marina - Doukissis Plakentias (- Airport)  17 (+21) km, 17 (+4) stations



Syntagma © Werner Huber At first, this line was perceived as a branch of Line 2 branching off at Syntagma and going to Ambelokipi, but later evolved into a separate line, planned to run from Egaleo in the west to Gerakas in the north-east. The line approved for construction in the late 1980s was from Keramikos (about 200m. north of Line 1's Thissio station) to the west of the city centre, to the Pentagon (Ethniki Amyna) in the north-east. Eventually, the instability of the ground in the area west of Syntagma, as well as the larger number of ancient remains than expected, led to the curtailing of the line to Monastiraki. Even there, the opening was delayed for three years because of building difficulties. To avoid collapse of the tunnel to Monastiraki, smaller bore tunnels were dug around it using miniature TBMs and these were filled with concrete to stabilise the soil. Monastiraki offers interchange with Line 1 and its traditional ticket hall building was renovated and restored, while a second entrance was provided at Athenas Street. Monastiraki opened on 22 April 2003.

Syntagma Line 3 © Werner HuberAt Syntagma, the Line 3 platforms are located just below those of Line 2 and at right angles. The original stretch of Line 3 then runs via stations at Evangelismos, Megaro Moussikis, Ambelokipi, Panormou and Katehaki to the Pentagon, subsequently renamed Ethniki Amyna. Except for the former terminus, all other stations have two side platforms. In July 2004, an extension was opened to Doukissis Plakentias station. Originally, there was only one intermediate station at Halandri, but two more were already partly built at Holargos and Nomismatokopio (Mint), with one more planned at Aghia Paraskevi. These three intermediate stations eventually opened in 2009/2010.

At Doukissis Plakentias, some trains surface and change power supply from 750V dc third rail to 25kv ac overhead, and run on the same tracks as the Suburban Rail to the Athens Airport, "Eleftherios Venizelos", 21 km away. The three intermediate stations on this stretch were skipped by metro trains for the first two years because they did not have the infrastructure to accept them, since they were designed for Suburban Rail trains which have lower floors and wider bodies.

Apart from the additional stations on the eastern extension, an extension is under construction to the west to Haidari, with the first section to Egaleo open since May 2007, with intermediate stations at Kerameikos (planned as Votanicos; interchange with the Suburban Rail), Eleonas (planned as Aghios Savvas, where the new Line 3 depot is located, and assigning Sepolia depot exclusively to Line 2 trains). A 1-station extension to Aghia Marina (planned as Haidari) followed in late 2013.

Construction of a 7.6 km Line 3 extension to Piraeus began in 2012 (see Project Website).

 History

28 Jan 2000: L3 Ethniki Amyna - Syntagma (8.5 km)

22 Apr 2003: L3 Syntagma - Monastiraki (1km)

24 Jul 2004: L3 Ethniki Amyna - Halandri

28 Jul 2004: L3 Halandri - Doukissis Plakentias

30 Jul 2004: through services from Doukissis Plakentias over the Suburban Rail tracks to the Athens Airport

10 Jul 2006: L3 trains stopping at Peania-Kantza and Koropi on the Airport route

Sept 2006: L3 trains stopping at Pallini on the Airport route

26 May 2007: L3 Monastiraki - Egaleo

02 Sept 2009: L3 Nomismatokopio station added

23 July 2010: L3 Holargos station added

30 Dec 2010: L3 Ag. Paraskevi station added

14 Dec 2013: L3 Egaleo - Aghia Marina

 Stations

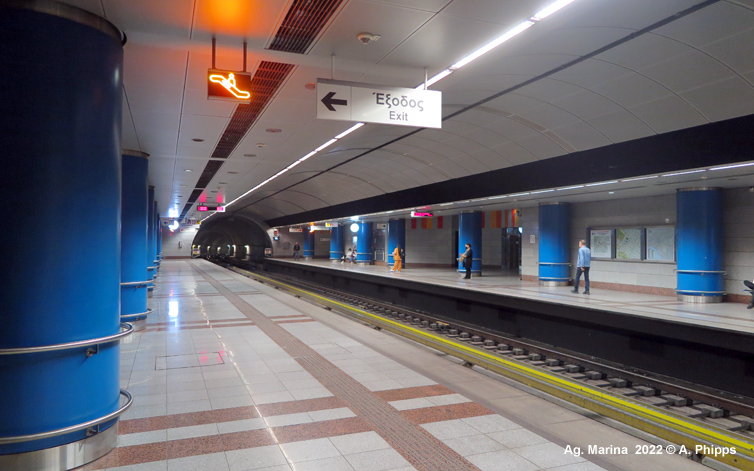

Aghía Marína






Egáleo
Eleónas
Kerameikós

Monastiráki

Line 1

Sýntagma

Line 2

Evangelismós

Mégaro Moussikís




Ambelókipi

Panórmou




Kateháki
Ethnikí Ámyna

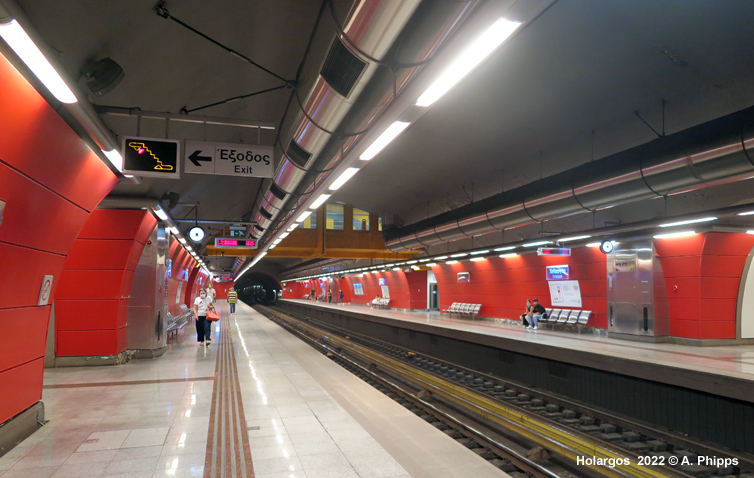

Holargós



Nomismatokopio





Aghia Paraskevi



Halándri
Doukíssis Plakentías

Pallíni





Peanía-Kántza





Koropí




Aerodrómio/
Airport
El. Venizélos

Accents added for easier pronunciation only!



Original text provided Panayiotis Constantinides! Thanks also to Manos Thireos.
